Oval Gear Flow Meter
Contact Us
Myko Electronics Pvt. ltd.
204, B-2, Sakivihar Complex, Sakinaka, Saki Vihar, Mumbai, Maharashtra - 400072, India
Call Us : View Mobile Number
Phone : +91-22-35670514
|
|
|
|

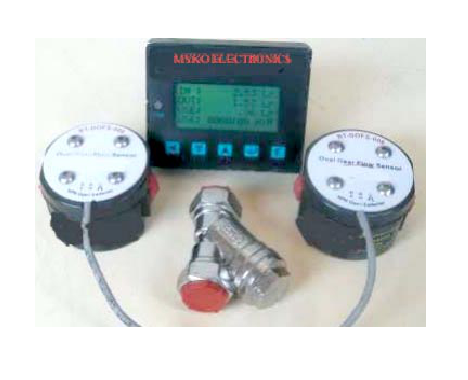

We offer the MK-DOGFM Oval Gear Flow Meter with exceptional precision, boasting an accuracy of ±1% RS /0.1% FSD. Constructed with durable materials such as Aluminum Anodize, SS-304, SS-316 for the enclosure, and options for Aluminum Anodize, S.S-316, PPS for the rotor. Featuring O-Rings in NBR or Viton, a Hard Stainless Steel-316 shaft, and a maximum working pressure of 5 MPa for the aluminum body. This flow meter operates smoothly in fluid & ambient temperatures ranging from -40 to 80°C, powered by 5-24V DC. Ideal for manufacturers, suppliers, and retailers seeking reliable flow measurement solutions.
Specifications
| Accuracy | ±1% RS /0.1% FSD |
| Material | Aluminum |
| Application | Industrial |
| Enclosure | Aluminum Anodize/ SS-304/SS-316 |
| Rotor | Aluminum Anodize/S.S-316/PPS |
| O-Ring | NBR/Viton |
| Shaft | Hard Stainless Steel-316 |
| Maximum Working Pressure | 5 MPa for aluminum body |
| Fluid & Ambient Temperature | -40 to80°C |
| Power Voltage | 5 - 24V DC |
Additional Information
| Payment Terms | T/T |
