Pressure Measuring Instruments
Leading Manufacturers, Exporters, Wholesaler, Retailer and Trader of Differential Pressure Transmitter, Digital Pressure Gauge (LC Series), Digital Pressure Gauge(HP Series), Digital Pressure Transmitter, Pressure Transmitter (MK-PX5), Pressure Transmitter(MK-PX5) With Indicator, Digital Pressure Gauge and Pressure Transmitter (MEAS) from Mumbai.
| Business Type | Manufacturer, Exporter, Supplier, Retailer |
| Number Of Flower | DPT - Differential Pressure Transmitter |
| Output | Choice Of Linear Or Square Root Output Conformity |
| Integration | Direct Digital Integration With Experion PKS And Other Control Systems |
| Sensor Type | Piezoresistive Sensor |
| Compensation | Automatically Compensates For Real-world Temperature And Static Pressure Variation |
| Packaging Type | Gray, Black |
| Application | Measurement Accuracy To The System Level |
direct digital integration with experion pks and other control systems provides local measurement accuracy to the system level without adding typical aid and da converter inaccuracies.
unique piezoresistive sensor automatically compensates input fur real world temperature and static pressure variation.
added "smart" features include configuring low.
| Business Type | Manufacturer, Supplier, Retailer |
| Catalogue |  View |
| Brand Name | MYKO |
| Shape | Round |
| Packaging Type | Black |
| Usage | Mesuring Pressure |
| Display Type | Digital |
| Accuracy | 0.5 Accuracy |
| Country of Origin | India |
Digital Pressure Gauge
Model : LC Series
Make : MYKO
Range : As Per Required
Process connection: 1⁄4” BSP (M)
Accuracy:± 0.5% FS
| Business Type | Manufacturer, Supplier, Retailer |
| Catalogue | View |
| Brand Name | MYKO |
| Packaging Type | Box |
| Country of Origin | India |
| Specialities | Long Working Life, High Quality, Adjustable, Accuracy |
| Product Code | 90262000 |
| Delivery Time | 1 WEEK |
Digital pressure gauge
MODEL :HP Series
Display : Alpha Numeric Display
Range : As Per Required
Resolution: 0.001 bar
Accuracy: ±0.1% of F.S.
Instrument Casting : SS304
Battery Backup : 200 hours
Process connection: 1⁄4” BSP (M)
Power Supply : 4 x 1.5 V Alkaline Battery
HSN/SAC: 90262000
| Business Type | Manufacturer, Supplier |
| Catalogue | View |
| Country of Origin | India |
| Accuracy | 0.5 |
| Number Of Flower | Digital Pressure Transmitter |
| Application | Industrial Use, Pressure Measurement |
| Power Supply | 24 Vdc |
| Packaging Type | Black And Orange |
Digital Pressure Transmitter
\\nMake : MYKO
\\nModel : MK-PX5-D
\\nRange.As Per Required
\\nOutput : 4-20 mA
\\nProcess connection 1/4 BSP male
\\nAccuracy : ± 0. 5% F.S
\\nMax Temp : 125°C
\\nSupply : 24 V DC
| Business Type | Manufacturer, Supplier, Retailer |
| Material | Stainless Steel |
| Power Supply | 24V |
| Application | Industrial Use, Pressure Measurement |
| Model Number | MK-PX5 |
Pressure Transmitter
Make : MYKO
Model : MK-PX5
Range : As Per Required
Output : 4-20 mA
Supply : 24 V DC
Process connection : 1⁄4”BSP male
Accuracy: +/- 0. 5% F.S
| Business Type | Manufacturer, Supplier, Retailer |
| Catalogue | View |
| Country of Origin | India |
| Feature | Easy To Fit,Measure Fast Reading,Perfect Strength |
| Brand Name | MYKO |
| Material | SS 316 |
| Pressure | 1.6 Mpa |
| Condition | New |
Pressure Transmitter
Make : MYKO
Model : MK-PX5
Range : As Per Required
Output : 4-20 mA
Supply : 24 V DC
Process connection : 1⁄4”BSP male
Accuracy: +/- 0. 5% F.S
Indicator.
Model - MK-DTI990
Size : 48*96
Input : 4 – 20 mA
Transmitter Supply : 24 V DC
Supply : 230 V AC
| Business Type | Manufacturer, Supplier, Retailer |
| Model No. | ME 150 |
| Display | 5 DGT (Seven Segment) 15 mm High Customized LCD |
| Range | As required. (Available from -1 to 400 kg/cm square) |
| Resolution | As Per Table |
| Calibration | Possible Password Protected |
| Temprature | 0 to 50 Degree C (Non Condensing) |
| Pressure Media | Liquid & Gases Compatible with SS 304 SS, Available with SS 316 Also |
| Connection | 1/4" BSP (M) Standard Operating Other On Request |
| Accuracy | 0.1 of FS |
| Power Supply | 7.5 VDC (1.5 X 5 No Alkaline) Recommended DURACELL type MN 1500-LR6 |
| Battery Life | 1000 Hrs Continues |
| Low Battery | Provided |
Description :
ME 150 is an Ultra Low Power Microprocessor controlled, accurate and versatile Digital Pressure Measuring Instruments, ME 150 has the state of the art customized large character display showing pressure with units, Low Batt, min, max.
ME 150 is very easy to use and you will never get lost in a multilevel menu system in fact you may never need to open the operation manual.
| Business Type | Manufacturer, Supplier, Retailer |
| Click Here to View More Detail | View |
| Material | Stainless Steel |
| Feature | Durable, Excellent Performance,High Quality |
| Number Of Flower | Industrial |
| Frequency | 50hz |

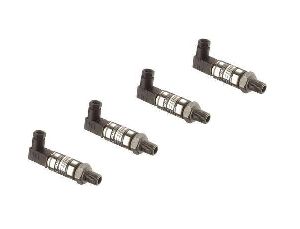

The M5200 pressure transducers from the Microfused™ line of MEAS, with their modular design, offer maximum flexibility for different configurations. This latest series sets a new price performance standard for demanding commercial and heavy industrial applications. This series is suitable for measurement of liquid or gas pressure, even for difficult media such as contaminated water, steam, and mildly corrosive fluids.
The wetted material is made of 17-4 PH stainless steel and the transducer’s durability is excellent with no o-rings, welds or organics exposed to the pressure media. The M5200 is weatherproof and exceeds the latest heavy industrial CE requirements including surge protection. The circuit is protected from reverse wiring at input and short circuit at output.
This product is geared to the OEM customer for low to mid volumes. MEAS stands ready to provide a custom design of the M5200 where the volume and application warrants. Additional configurations not listed are either available or possible. Please inquire for further information.
