Flow Measuring Instruments

PD Flow meter as per application :

cast iron oval gear Flow meter is widely used in the metering of various oil products and liquids having no corrosion to the cast iron material.

Cast steel oval gear Flow meter is used for high-pressure, low-corrosion liquid media

cast Aluminum oval gear Flow meter is widely used in the metering of low-viscosity low-corrosion (such as gasoline) liquid media and its rotor is made of Aluminum Alloy

stainless steel oval gear Flow meter are widely used in the metering of liquid media with high corrosion, such as acid, alkali, salt and organic compound, and some other liquid, like: milk, alcohol, chemical and pharmace

Electromagnetic Flow Meter T – 25 mm

* Type: Teflon Lining

• MOC: Body: SS 316

• Line pressure: max 15 Kg/ cm2

• Fluid: Water/STP/ETP

• Conductivity: minimum 5 μS/ cm

 •Temp: Max. 120 Deg. C

• Accuracy: ±0.5 % of reading

 • Electrode: SS 316

• I/p Supply: 230 V AC

 • Output: 4 -20 mA

 • Protection Class: IP 65

 • Housing: Aluminum Die. Cast

• Electrical Connection: PG 9 Gland. Transmitter Integral

• Inbuilt Processor Based Flow Indicator

•Totalizer Flow Rate: 4 Digits LED

 •Total Flow: 9 Digits LED

•Line Size: 1” (25 mm)



• Flow Rate: 0.5301 m3/hrto 21.20 m3/hr

Aluminum body and rotor : Flow measurements of  kerosene, Gasoline, diesel, light oil, heavy oil S.S. body and rotor : Flow measurements of  Pharmaceutical drug, food oil, and all application

positive displacement Fow meter utilizes specially designed oval rotors at its core, ensuring high accuracy and long life. These oval rotors excel in measuring a wide range of high viscosity uids, making the meter suitable for diverse industrial applications.

Application Of This Flow Measurement Technique.

Effluent Treatment Plants.

Sewage Treatment Plants.

Chemical & Pharmaceutical.

Petrochemicals & Fertilizers.

Water Supply Schemes.

Steel & Aluminium.

Food & Drugs.

Sugar Industries & Distilleries.



Pulp & Paper

We are offering flow totaliser. Based on state of art latest micro controller technology with watchdog feature for fail safe operation. acceptability of various analog inputs from flow transmitter. a high resolution of 20000 counts (max) for flow rate & 999999 counts (max) for flow totalizer & batch counter. highly informative, user friendly display & keyboard interface with indication for flow rate, total & batch. relay control action can be programmable.

We are offering fuel consumption meter. Application highly reliable and accurate fuel consumption measurement in trucks, tankers, infrastructure and construction machinery, agriculture machinery, river boats and diesel engine.it define you an accurate consumption of fuel so difficult to theft fuel from vehicle
features and technical datain their facility to enter : fuel filling qty, and its add in total filling automatic when you press enter key,1) indicate total fuel consumption, indicate total fuel supply toward engine, indicate total fuel return from engine.2) indicate total time of fuel supply, indicate total time of fuel return, indicate total time of fuel consumption.3) indicate fuel consumption, supply fuel and return fuel flow rate : litterhour.4) total filling, total consume, and balance fuel in tankabove all 4 display change with shift key, 8 digit , 4 line lcd displaysuitable with all fuel flow sensoron board power supply from vehicle-8 - 30 vdcflow sensor exciting power 12vdc from paneloutput : rs-232rs-485 modbusfeatures & technical dataoption:1) fuel consumption meter available with digital output pulse atspecified fuel consumption for connect to gprs or gps systemindicate total fuel consumptionindicate total fuel supply toward engineindicate total fuel supply toward engineindicate time of fuel supply and returnindication of option output

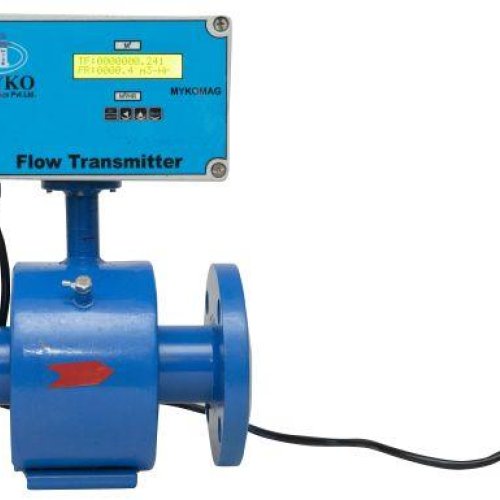

Electromagnetic Flowmeter _ Specifications _ Model: MYKO • Type: Rubber Lining (For Clean Water) • MOC: Body: M.S. • Line pressure: max 15 Kg/ cm2 • Fluid: Water • Conductivity: minimum 5 μS/ cm • Temp: Max. 90 Deg. C • Accuracy: ±0.5 % of reading • Electrode: SS316 •I/p Supply: 230 V AC • Output: 4-20 mA • Protection Class: IP 65 • Housing: Aluminum Die. Cast • Electrical Connection: PG 9 Gland. Transmitter- Intergral • Inbuilt μProcessor Based Flow Indicator Totaliser   Flow Rate: 4 Digits LED. Total Flow: 9 Digits LED.

We offer portable data logger. Memory for 32700 reading (16350 temperature & humidity)

usb interface for set up& data download
user programmable alarm thresholds reietive humidity & temp logging data

We are offering rotameter. A rotameter is a device that measures the flow rate of liquid or gas in a closed tube.

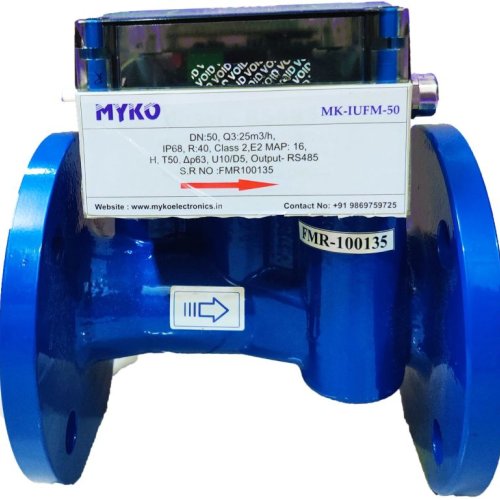

Smart Inline Ultrasonic Flow Meter is a new-age water meter that combines the power ofIOT with the latest sensor technologies. The integrated telemetry and battery poweredcapabilities make it easy to manage your water consumption from anywhere and at anytime.The meter is ISO 9001:2015 certified and complies with the guidelines of Central GroundWater Authority (CGWA)



An electromagnetic flow meter, also known as a magmeter, is a device that measures the flow of conductive liquids using Faraday's Law of Electromagnetic Induction. It works by generating a magnetic field around a pipe and measuring the voltage induced in the fluid as it flows through that field. This induced voltage is directly proportional to the flow rate of the liquid.

The DIGITAL SOAP BUBBLRFLOW METER is based on the classical method viz. Soap film method. The instrument is automated by using Microcontroller which provides highly accurate measurement and direct digital read out of gas flow rate. The time required for the soap film to pass through a fixed known volume is measured. The soap film is sensed by IR sensors. When the soap film passes through first sensor, it activates the timer of Microcontroller. Timer is stopped when the film crosses the second sensor. The flow rate is then calculated by Microcontroller and instantly displayed in ml/min. Where as DFM-05 & DFM-06 are direct flow measurement based & battery operated.

Salient Features :

• Direct Digital Readout
• Microcontroller Based
• Digital Display of LED/LCD
• Highly Accurate and fast readout
• Useful for measuring any gas flow rate specially for G.C. & Analytical Instruments.
• Easy to Operate
• Free of Operational & Human errors
• MFM-01, 02, 03 & 04 - Table Mounting (Soap Solution based)
• MFM-05, DFM-06 - Portable (direct measurement)

A Flow switch is normally a simple device that monitors flow and sends a trip signal to another device such as a Pump to protect it. Flow switches are used for Pump protection, Cooling Circuit protection, high & low flow rate alarm and general flow monitoring.

Applications :

• Highly reliable and accurate fuel consumption measurement in trucks, Tankers, Infrastructure and Construction machinery, agriculture machinery, river boats and diesel engine.
• It define you an accurate consumption of fuel so difficult to theft fuel from vehicle

Features :

• Indicate total fuel consumption, Indicate total fuel supply toward engine, Indicate total fuel return from engine.
• Indicate total time of fuel supply, Indicate total time of Fuel return, Indicate total time of Fuel consumption.
• Indicate fuel consumption, supply fuel and return fuel flow rate : litter/hour.
• Total filling, Total consume, and balance fuel in tank
