Portable Data Loggers

Features :

• 16 universal input ( RTD. Thermocouple, 0-5Vdc, 0-20mA or 4-20 mA input signals.
• Onboard 32000 reading per channel storage .
• Parallel Port
• Individual HI / LO alarm with 2 relay outputs
• Additional relay outputs with optional Relay card
• Networkable using Ethernet Port (optional)
• Free PC Based Data Acquisition software
• 21 CFR Part 11 (optional)
• Front end IP65 protection
• 3.5 inch TFT with Touch Screen Control
• Onboard USB Port (Memory stick)

Benefits :

• Easy to configure analog input type with front end TFT touchscreen.
• Logged data is secured as storage media is inside the unit.
• Helps to connect any type of dot matrix printer.
• Relay output for control or activating external alarms.
• Individual Alarm relay (HI / LO) can be provided for all 16 channels.
• Data accessible via LAN.
• Not necessary to pay extra cost.
• Logged data is secured and can not be manipulated by user.
• Panel mounting enclosure which can sustain in harsh environment.
• Easy to use icon menu for setting user parameters with touch interface.
• Logged data can be downloaded to Memory stick and transfer to PC.

32 Channel Data logger

Model : MK-DL32

Input : 32 universal analog inputs (RTD, Thermocouple

 0 – 10 VDC, 0 - 20 mA or 4 – 20

mA Signal Inputs)

Accuracy : 0.1% FSD of range

Internal Memory : 4 M bits

(1 to 112000 readings)

Display : 7.5 inch multicolor TFT graphical

display with CCFL/LED backlit

 (Touch screen)

Resolution : 640 X 480 pixels

Serial Communication port : RS-232 or

 RS-485 Factory setted.

Operating Temperature : -20 to 55°C

Dimensions : W-300 X H-195 X D-115 mm

Panel Cutout : W-257 X H-175 mm

Features :

• 8 universal input ( RTD. Thermocouple, 0-5Vdc, 0-20mA or 4-20 mA input signals.
• Onboard 32000 reading per channel storage .
• Parallel Port
• Individual HI / LO alarm with 2 relay outputs
• Additional relay outputs with optional Relay card
• Networkable using Ethernet Port (optional)
• Free PC Based Data Acquisition software
• 21 CFR Part 11 (optional)
• Front end IP65 protection
• 3.5 inch TFT with Touch Screen Control
• Onboard USB Port (Memory stick)

Specifications

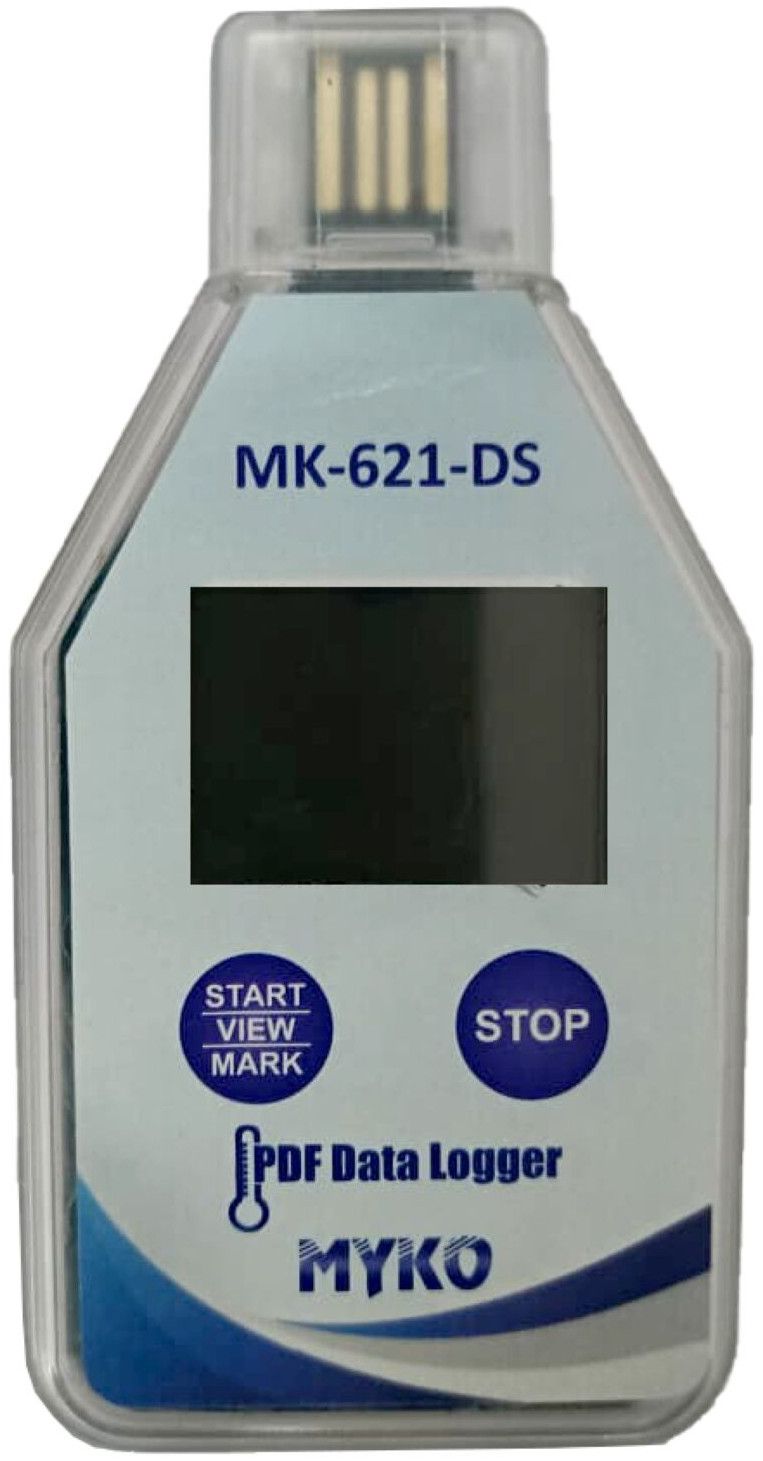

Features :

• Automatic generation of reports in PDF format - firmware


• Low cost - one time use, no need to return to the sender of the load


• Built-in USB interface


• Compact (credit card format), waterproof (IP67), non-toxic - can be used to contact food


• Alarm indicator - flashing LED


• Individual requirements pre-programmed (duration, alarm limits, alarm delay, alarm mode, start delay)


• Certification according to CE, EN12830, RTCA-D0160G

This data logger module can be used to monitor humidity and temperature of greenhouses, warehouses, food transports, aircraft cabins, refrigerated trucks, containers, museums, and HVAC equipment.

It measures and stores up to 32700 relative humidity and 32700 temperature readings over 0 to 100%RH and - 40 to +70°C (-40 to +158°F) measurement ranges by your PC with USB interface. The LCD can show current readings in MAX, MIN and sign of alarms indications.

Features :

• Memory for 32700 readings (16350 temperatures and 16350 humidity readings)
• Dew point indication via Windows Software
• Selectable measuring cycle: 2s, 5s, 10s, 30s, 1m, 5m, 10m, 30m, 1hr, 2hr, 3hr, 6hr, 12hr, 24hr
• Status Indication via Red/Yellow LED and Green LED
• USB Interface for Set- up and Data Download
• User- Programmable Alarm Thresholds for Relative Humidity and Temperature
• Analysis software used to view graph for logging data
• Multi- mode to start logging
• Long battery life
