Temperature Measuring Instruments

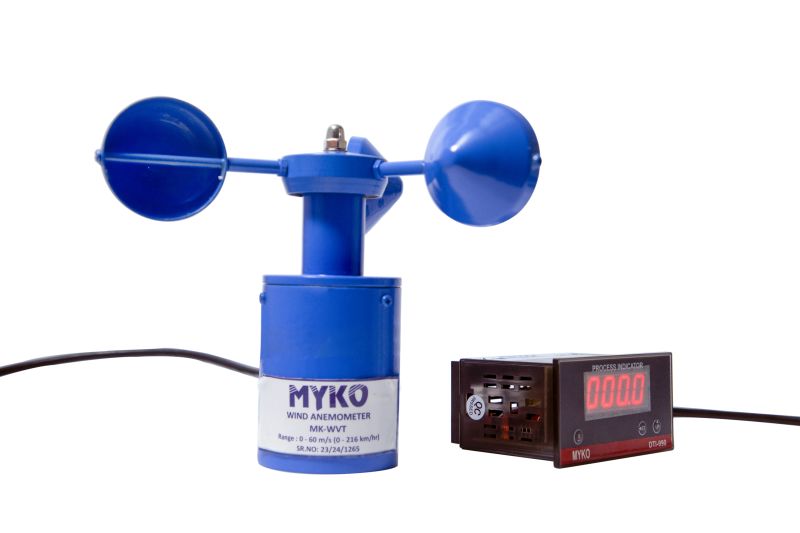

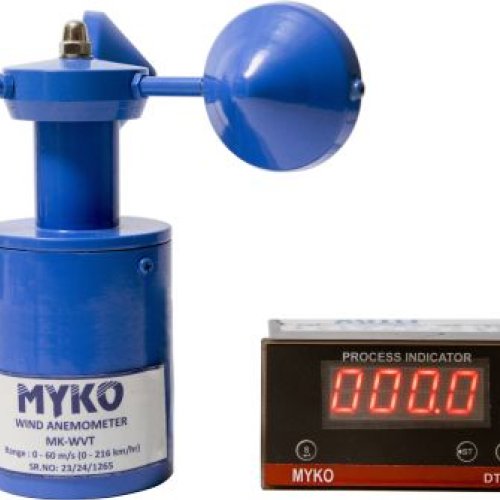

We offer cup anemometer. Cup anemometer specifications:
wind speed sensor : 3 cup anemometer.
Sensing : 3 cup assembly mounted on friction free shaft and
coupled to a chopper.
Starting threshold : 0.3 meterssec .
Range : 0 to 65 meterssec .
Distance constant : 2.5 meters
output : ttl pulses output proportional to wind built in line driver to
drive long cable > 50 ohms loop resistance.
Accuracy : better than 0.5 ms up to 10 ms 2% fsd
diameter of cup : 50 mm.
Diameter of cup assembly : 165 mm.
Construction of sensor body : brass housing and stainless steel shaft .
Principle of operation:
anemometer is a fast response, low threshold opto electronic anemometer. When
rotated by wind, a chopper on the anemometer shaft interrupts an infra red light source ,
generating pulses from a photo transistor. The signal is amplified and fed through a line driver .
The frequency is proportional to wind speed. The anemometer is provided with a 3 pin
connector for easy replacement and comes with 10 meters of shielded cable.

General Features:
* Universal Input signal: Thermocouple, RTD, resistor, potentiometer,     millivolt
* Programmable output 0/4-20mA or 0-10VDC input
* configurable via PC software
* Build in cold junction compensation
* High accuracy of 0.1% F.S
* USB cable for configuration can draw power from PC directly
* No external power required for programming
* Surge protection and reverse connection protection

Head mounted temperature transmitter is used for resistance thermometer (RTD), thermocouple (TC), Resistance transmitter, voltage (mV) signal input, two wire 4-20mA analog output,  mounted inside transmitter.

Highlights :

• Scaleable 0-5 V, type J or K output
• Wide -20°C to 500°C (-4°F to 932°F) temperature range
•  Rugged IP 65 (NEMA-4) stainless steel housing
• Rugged 13:1 optics at 90% energy
• 150 mSec (95%) response time
• Alarm output
• Sensor status/self diagnostic indicator LED
• RS232 digital communications for sensor set-up and monitoring
• Adjustable signal processing
• DataTemp® Multidrop software compatible
• Accessories for air purging and lens protection

Features:

• Measuring Range: -50 to 400°C
• Element: Pt-100, 3-wire
• Accuracy: Class A
• Sheath material: SS316
• Sheath Diameter: 6mm, Sheath length: 300mm

Multi-Use PDF TEMP&RH Data Logger is the

perfect tool for cold-chain monitoring and documentation of

temperature and relative humidity conditions that are critical in

laboratories, pharmaceutical, medical, storage, freezers, coolers,

shipping containers, warehouses, environmental monitoring and

food storage applications.



Specifications:

Temperature Scale : °C or °F

Accuracy ±3%RH; ±0.5°C (-20°C ~ +40°C), ±1.0°C(other range)

Measurement Range : Humidity 0%~100%RH, Temp -30°C ~ 60 °C

Resolution : 0.1%RH typically 0.1°C

Memory Capacity : 32,000

Recording Options : Delayed or Push-To-Start Logging

Record Interval :  10 seconds to 18 hours adjustable [Default:10 mins]

Start Delay :  Start Delay Programmable (0 ~ 254 mins) [Default: 30 mins]

Alarm Delay : Programmable (0 ~ 960 mins) [Default: 10 mins]

Alarm Range : Programmable high or low alarm limit for each channel

[Default: <2°C or >8°C, <40%RH or >80%RH]

Shelf Life / Battery Typically 1 Year; CR2032 3.0V Lithium Battery (Depending on Sampling Rate and Environment)

Report Generation : Simultaneously generate PDF report and CSV file

Communication Interface : USB2.0

Time Zone : UTC +0:00 (Default)

Dimensions 89mm x 36mmx 16mm

N.W. 25g

How to

Temperature control is a process in which change of temperature of a space (and objects collectively there within) is measured or otherwise detected, and the passage of heat energy into or out of the space is adjusted to achieve a desired average temperature.

We are offering Temperature Sensor.
- Element - J,K,S,R,B,T,E,G,C,D. Pt 100, Simplex & Duplex
- Head - Die-Cast Aluminum, Weather Proof I Explosion Proof (Certified by CMRS, Dhanbad) as per application.
- Sheath - The material of the sheath is selected as per the media of application and temperature range.
