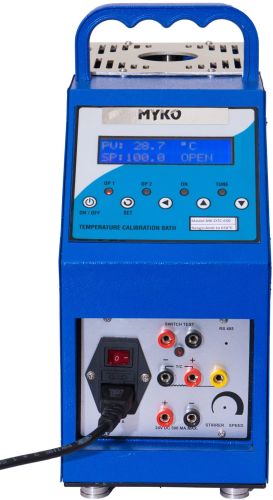

Dry Block Temperature Calibrator


Dry Block Temperature Calibrator

An emerging name in the market, our organization is involved in offering Dry Block Temperature Calibrator within the most lucrative deals. We are counted amidst the well-known names based in Mumbai(India) and cater to every nook and corner.



Application : Ideal for calibration of thermocouples, RTDs, gauges, thermometers, switches, transmitters, etc.

Features

  • Dry Block
  • Graphical Display
  • Microcontroller Based
  • Feather Touch Key Pad
  • Fast Heating & Cooling
  • Reads Set temperature and device input simultaneously
  • Good Stability
  • Loop Power Supply for Transmitters
  • Facility to check Temperature Switch Test
  • Measurement Facility for RTD, Thermocouple, mV, V, mA, Ohms
  • Internal Cold Junction Compensation


Other Specifications

  • Resolution : 0.1oC
  • Units : oC/oF Switchable
  • Display : Graphical with LED Backlight
  • Power Supply : 230V AC ± 5% / 50Hz, 1.2 KW for 650UTC & 500 W for 350UTC
  • Transmitter Supply : 24V DC ± 10% (Loop Powered)
  • Block Diameter : 25.4 mm
  • Block Depth : 120 mm
  • Insertion Tube Depth : 110 mm
  • Temperature Setting : Digital Display through feather touch keypad
  • Display Stability : ±0.2oC
  • Radial Uniformity : ±0.3oC with similar probes
  • Fixed Steps for O temp. setting in C : 50, 150, 300, 450, 600
  • Switch Test : Continuity check with OPEN / CLOSE indication


Standard Delivery

  • Instrument : 1 no.
  • Power Cable : 1 no.
  • Carrying Case : 1 no.
  • Test Lead (2 wire) : 1 no.
  • Test Lead (3 wire) : 1 no.
  • Insertion Tube :
    • Dual Hole - 1 x 1/4" + 1 x 12.5 mm
    • Dual Hole - 1 x 1/4" + 1 x 8.2 mm
  • Insertion Tool : 1 no.
  • Spare fuses : 6A - 2 nos.
  • User Manual : 1 no.
  • Traceable Calibration Certificate


Optional

  • RS232 with RnD Cal-T Software
  • Insertion Tube of size : 1 x 1/4" + 1 x 10 mm, 2 x 1/4" + 2 x 5 mm
  • 110 VAC Power Supply
  • Accredited (NABL) Calibration Certificate as per ISO/IEC 17025:2005 Standard


Details

  • Current terminal input protection : Fuse 100mA / 250V
  • Safety protection : Thermal cutout for bath temperature above 660oC
  • System Fuse : 6 A 250 V
  • Size : 155 mm (W) x 240 mm (H) x 350 mm (D)
  • Weight : 8 kgs.


Technical Specifications

Model Range Accuracy Bath Stability Stabilisation Time Heating Time Cooling Time
350 UTC 50 to 350oC ±0.4oC ±0.05oC 15 Min. 50 to 350oC 350 to 100oC
18 to 20 Min. 30 to 35 Min.
650 UTC 50 to 650oC ±0.6oC ±0.05oC 20 Min. 50 to 650oC 650 to 100oC
30 to 32 Min. 40 to 45 Min.

Measurement Specification

Parameter Range Resolution Accuracy
mA 0 to 25 mA 0.001 mA ±0.025% of Reading + 10 μA
mV 0 to 1000.0 mV 0.01 mV ±0.025% of Reading + 0.25 mV
Volts 0 to 10.000 V 0.001 V ±0.025% of Reading + 3 mV
Ohms 0 to 400 Ohms 0.01 Ohms ±0.025% of Reading + 0.1 Ohm
RTD(Pt 100)3 -200 to 850C 0.1oC ± O 0.025% of Reading + 0.3oC

Thermocouple Types

T -200 to 400oC 0.1oC ±0.025 % of Reading + 1oC
J -200 to 1200oC 0.1oC ±0.025 % of Reading + 1oC
K -200 to 1372oC 0.1oC ±0.025 % of Reading + 1oC
N -200 to 1300oC 0.1oC ±0.025 % of Reading + 1oC
R 300 to 1760oC 1oC ±0.025 % of Reading + 2oC
S 300 to 1760oC 1oC ±0.025 % of Reading + 2oC
