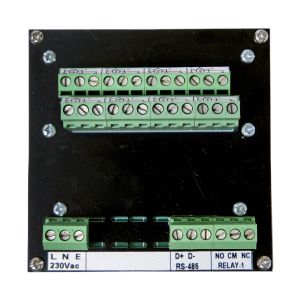

8 Channel Data Logger




The 8 Channel Data Logger is highly popular among the users because of its user friendly design. It is highly used in the various industries owing to its high efficiency and accuracy.


Specifications :
  • Maximum 8 numbers of channel
  • 4 soft touch keys provided in the front panel for parameter programming
  • Dimension : (96W x 96H x 170D)mm

Application Areas :
  • Pharmaceutical industry
  • Water pumping station
  • Iron and steel industry
  • Chemical industry
  • Petroleum industry

Optional Features :
  • Real Time Clock : Nonvolatile memory EEPROM and battery back up for RTC (Real Time Clock)
  • Printout facility :
    • Along with RS-232/RS-485 Serial port with MODBUS RTU PROTOCOL, Direct Printout on 80 Column Dot Matrix Printer by 25 pin parallel port without need of computer (optional) can be given.
    • Field programmable print interval 5 to 9999 seconds.
  • Data storage : 5000 readings per channel can be stored for all 8 channels available
  • Data Security : EEPROM (Nonvolatile),ensures data retention for 10 years
  • Software : Windows based Data Acquisition software (optional)

Specifications :
  • No. of channel :
    • Max. 8 channels
  • Input :
    • Fixed input type Factory settable for thermocouples (J,K,R,S,T,E,B,N),RTD (PT-100), 4-20mA,0-1VDC etc
    • Thermocouples (J,K,R,S,T,E,B,N) can be set at field through Keyboard
  • Display :
    • 4 Digits of 0.56” height 7 seg. display for process value display
    • 1 Digits of 0.56” height 7 seg. display for channel no. Display
  • Settings :
    • 4 Soft touch Keys on front panel for parameter programming.
  • L.E.D. Indication :
    • 8 L.E.D.s for alarm indication,AL1 & AL2
  • Other Indications :
    • Temp. sensor Break or open indication on display
    • For 4-20mA & 0-1VDC Linear input under range and over range indication
    • Built in temperature reading in °C or °F User selectable
  • Alarm :
    • 2 independent set points with hysterisis individual for each channels with 2 common relay output of 1 NO/C/NC Relay contact rated 230V/5A for relay1(AL1) & Relay 2 (AL 2)
    • Optional individual relay output can br given for each channel with external relay module
    • Programmable LATCH and NON-LATCH facility for common relay and LED indication.
  • Linearisation :
    • Very high accuracy 0.3% with software linearisation
  • Scan Rate :
    • Field programmable channel scan time 1 to 59 seconds for display
  • Compensation :
    • Automatic Cold Junction Compensation for all thermocouples
    • Automatic Wire Length Compensation for long wire RTD input
  • Comm.with PC :
    • RS-232/RS-485 Serial port with MODBUS RTU PROTOCOL
  • Dimensions :
    • (96W x 96H x 170D)mm
  • Cutout :
    • (92W x 92H)mm
